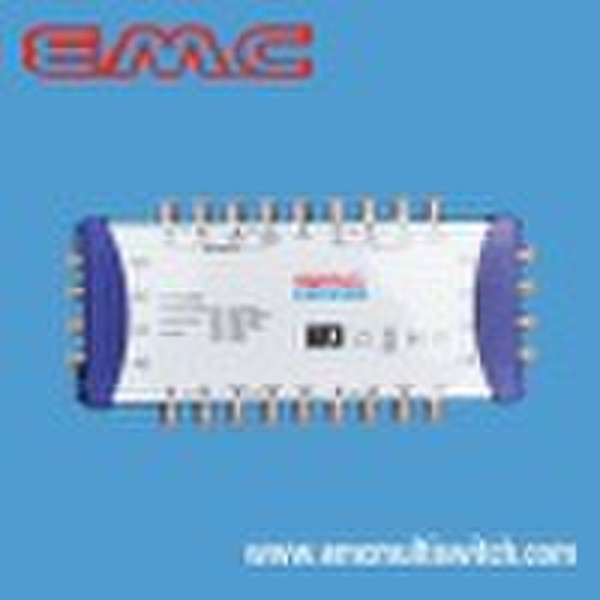

9in Cascade Satellite Multiswitch 9X9X8(EMC9908T/P

Features: 1.8 satellite IF inputs and 1 terrestrial TV input 2.Subscribers outputs select trunk signal by 13/18V,0/22kHz and DiSEqC2.0 commands 3.Built-in terr amplifier to compensate cable loss from input to subscribers. 4.Support network remotely power via trunk ports 5.Environmental friendly metal housing with plastic holder 6.8 satellite IF inputs meet complex SMATV system requirement 7.9908T is available with 2 versions, Model no with suffix P for passive type Specifications: Item Model : EMC9908T/P Frequency range: SAT 950-2300MHz Frequency range: TER 5-862MHz Input: 8Sat+1Terr Output:9 Cascade+8 User loss SAT(user): 3dB loss TER(user): 4/(25)dB loss SAT(Trunk): 4dB loss TER(Trunk): 3.5dB Isolation SAT/SAT: 35dB Isolation SAT/TER: 28dB Isolation(switching): 29dB User Max Output Level(SAT): 100dBuV User Max Output Level(Terr): 89/(/)dBuV Input/Output connector: 75Ω DC Current consumption: 55/(/)mA Current Pass per Trunk: 500mA Working Temperature: -40 80°C Dimension: 260X120X40mm
