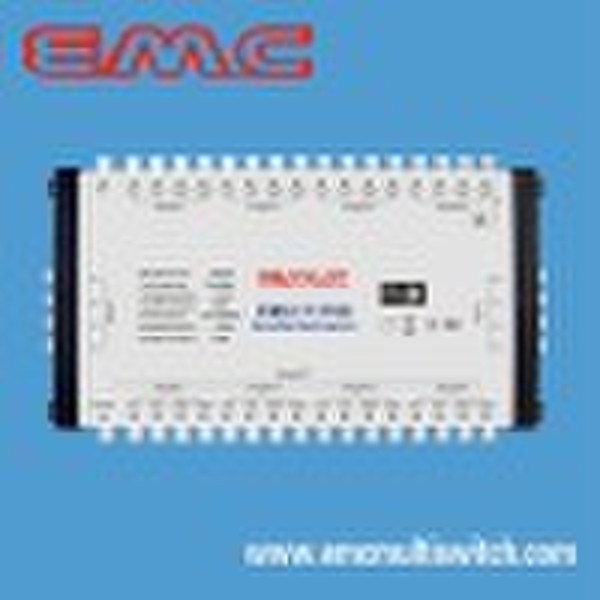

17in cascade satellite multiswitch 17x17x8 (EMC171

Features: 1. 16 satellite IF inputs and 1 terrestrial TV input 2. Subscribers outputs select trunk signal by 13/18V,0/22kHz and DiSEqC2.0 commands 3. Low insertion loss designed for network with more than 48 subscribers 4. Support network remotely power via trunk ports 5. SAT signal to the subscribers are active and supplied by the receiver 6. Distribution of terrestrial bands (5 862MHz) are broadband and passive 7. Environmental friendly metal housing with plastic holder Specifications: Item Model : EMC171708/(P) Frequency range: SAT 950-2300MHz Frequency range: TER 5-862MHz Input: 16Sat+1Terr Output: 17 Cascade+8 User loss SAT(user): 3.5dB loss TER(user): 4/(25)dB loss SAT(Trunk): 4dB loss TER(Trunk): 3.5dB Isolation SAT/SAT: 33dB Isolation SAT/TER: 28dB Isolation(switching): 29dB User Max Output Level(SAT): 100dBuV Input/Output connector: 75Ω Current Pass per Trunk: 500mA Working Temperature: -40 80°C Dimension: 456X120X40mm
