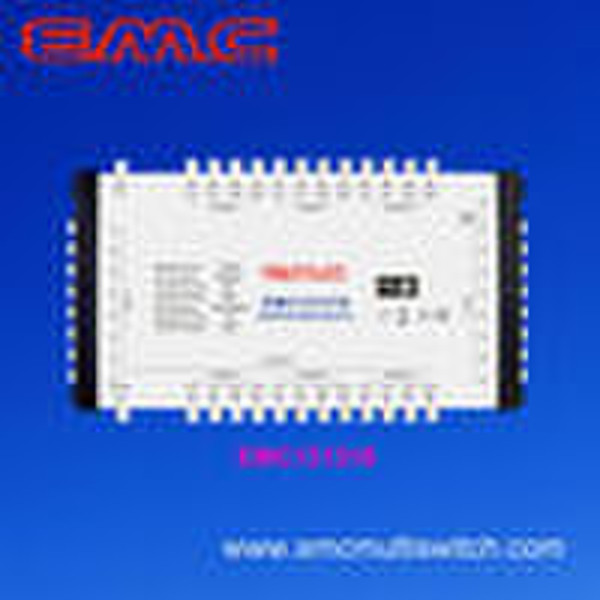

13in cascade Satellite multiswitch 13x13x16(EMC131

Features:1.12 satellite IF inputs and 1 terrestrial TV input 2.Subscribers outputs select trunk signal by 13/18V,0/22kHz and DiSEqC2.0 commands 3.Low insertion loss designed for network with more than 48 subscribers 4.Built-in terr amplifier to compensate cable loss from input to subscribers. 5.12 satellite IF inputs meet complex SMATV system requirement 6.External high-stability power adaptor (current more than 2 A ) 7.Environmental friendly metal housing with plastic holder 8.131316 is available with 2 versions, Model no with suffix P for passive typeSpecifications:Item Model : EMC131316/PFrequency range: SAT 950-2300MHzFrequency range: TER 5-862MHz Input: 12Sat+1Terr+1Power in Output: 13 Cascade+16 User loss SAT(user): 4dB loss TER(user): 2.5/(26)dB loss SAT(Trunk): 5dB loss TER(Trunk): 4dB Isolation SAT/SAT: 32dB Isolation SAT/TER: 30dB Isolation(switching): 29dB User Max Output Level(SAT): 99dBuV User Max Output Level(Terr): 89/(/)dBuV Input/Output connector: 75Ω DC Current consumption: 55/(10)mA Current Pass per Trunk: 500mA Working Temperature: -40 80°C Dimension: 410X235X55mm
